Battery Powered Hydraulic Landing Gear Systems
Power-Packer offers the latest technology with Battery Operated Rechargeable Trailer Landing Gear. The kit comes complete with 12V DC power unit, dual 24 AGM batteries, and trail charger. Kits available with 2 legs or 4 legs. Multiple control options available including remote mount option or corded pendant control.
Please contact Customer Service for information on lead times and availability of the Battery Powered Control Box.
Features & Benefits
| Features |
Benefits |

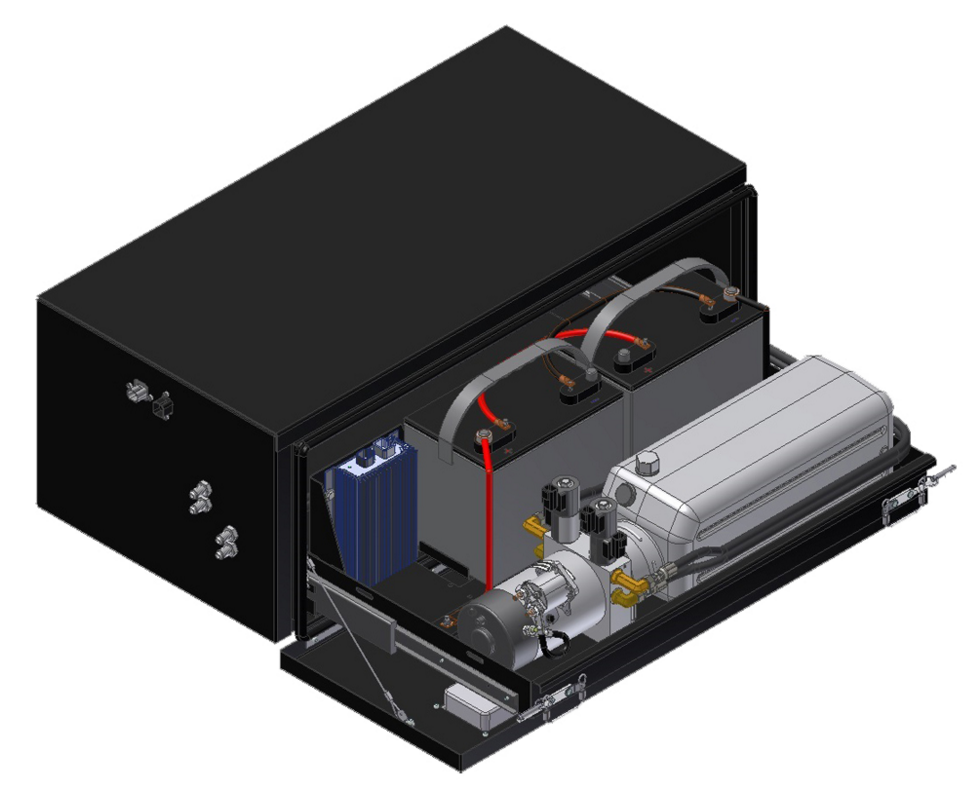

| Vented weather-proof enclosure (14” Tall x 20” Deep x 36” Long) |
- Powder-coated 14 gauge steel construction
- Stainless Steel hinges and latch hardware
- Reinforced upper corners allow for direct mounting to chassis through top of enclosure
- Slide out tray for easy access of internal components
- Enclosure has option key lock for tamper resistance and safety
|
| Multiple Control Options |
- Standard control touch pad mounted to enclosure
- Optional wired touch pad can be wired remotely
- Master on/off switch and directional control
- Touch pad meets IP66 and IP67 requirements
- Electronic control touch pad wired on a fused circuit
|
| 12V DC Power Unit |
- Power extend in under one minute depending on load
- Power retract time under 20 seconds
- High/Low 2-stage pump with 2.5 gallon reservoir will support landing gear legs in sets (as described below in leg chart)
|
| On-board Charging System |
- Uses aux trailer circuit (pin 7 shared ABS)
- Trail Charger included with Lockouts for ABS and cargo lighting
|
| Dual Group 24 AGM Batteries |
- Batteries, pump, and charger mounted to slide out tray
- Organized layout, easy to reach components
|
